Marchio: | WUXI SYLAITH |
Numero di modello: | ASTM A179 / A213 / A519 |
MOQ: | 1 Mt |
prezzo: | negotiable |
Condizioni di pagamento: | L/c, t/t |
Capacità di approvvigionamento: | 50000MT/year |
Product Description
Wuxi Sylaith Special Steel Co.,Ltdis located in Chinais economy, industry and shipping center-Wuxi city, .The total investment is 10 million RMB.
The main products are the series of 200, 300, 400 stainless steel .And this year ,we also start to work on aluminum material.Various size can be produced according to customer is demand. Our factory also have the equipment for 8K ,NO.4 sheet, hairline sheet and attaching film. Our products have been exported Indonesia, India, Mexico, South Korea, Germany, Israel, Russia and so on. Our material is widely used in home appliances, kitchen supplies, medical equipment, auto parts, decorative tube, industrial pipe, chemical industry, petroleum, boilers, food industry and other industries.We keep pace with the times, constantly consolidate our strength, improve the quality of our products, and continuously.
Product Name | Stainless steel welded pipe/tube |
Standard | ASTM, GB, JIS, DIN, EN, AISI |
Material Grade | TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S |
TP410 TP410S TP430 | |
S31803/S32205 S32750 S32760 | |
904L | |
Outer Diameter | Seamless Pipe: 4mm-812.80mm |
Welded Pipe: single slit(Φ6mm-Φ630mm) | |
Thickness | Seamless Pipe: 0.5mm - 60mm |
Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm) | |
Length | 5.8-6.1 m or as customers' request(Max20 meters) |
Tolerance | Acording to the Standard. |
Surface | 180G, 320G, 400G Satin / Hairline |
400G, 500G, 600G or 800G Mirror finish | |
Test | UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers |
Certificate | ISO9001-2008,ASME, PED |
Delivery Time | 3-25 Days, Depends on quantity |
Usage: | Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Machinery Industry, Chemical Industry, Mining, Construction & Decorati |
Chemical Composition
Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Factory test and other terms
1.Hydrostatic or Nondestructive Electric Test
2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking
6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing
service.
Grade and Chemical Composition (%)
STANDARD | GRADE | CHEMICAL COMPOSITION | |||||||||
C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | ||
ASTM A179 | A179 | ≤0.06-0.18 | / | 0.27-0.63 | ≤0.035 | ≤0.035 | |||||
ASME SA106 | SA106B | 0.170.25 | ≥0.1 | 0.701.00 | ≤0.030 | ≤0.030 | ≤0.035 | ||||
ASTM A106 | A | ≤0.25 | ≤0.10 | 0.270.93 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.40 | ≤0.08 |
B | ≤0.30 | ≤0.10 | 0.291.06 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.40 | ≤0.08 | |
C | ≤0.35 | ≤0.10 | 0.291.06 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.40 | ≤0.08 | |
ASTM A53 | A | 0.25 | / | 0.95 | 0.05 | 0.045 | 0.40 | 0.15 | 0.40 | 0.40 | 0.08 |
B | 0.3 | / | 1.2 | 0.05 | 0.045 | 0.40 | 0.15 | 0.40 | 0.40 | 0.08 |
Mechanical Properties
Mechanical properties | |||
Material |
Min Tensile strenght N/mm2 |
Min. Yield strengh N/mm2 |
Min Elongation % |
ASTM A53 Gr.B |
330 | 205 | 35 |
ASTM A53 Gr.B | 415 | 240 | 30 |

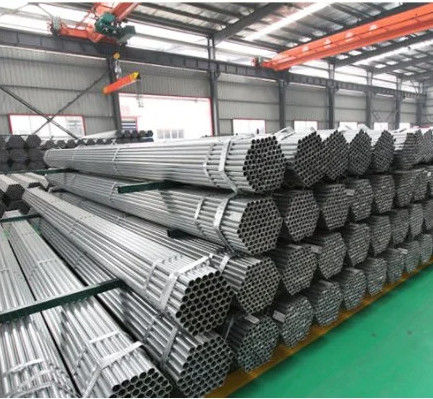

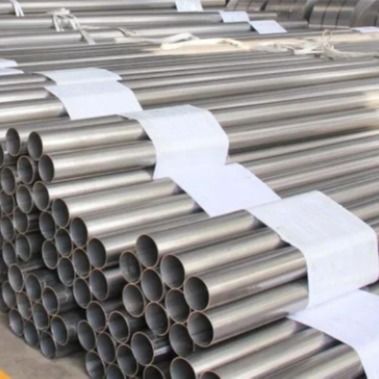

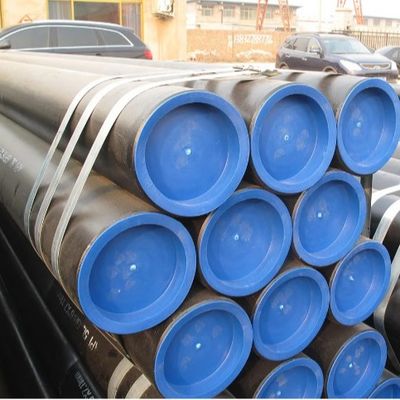

Detailed Photo
Factory Photo
Processing
Applications:
1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Packaging & Shipping:
Certificates:
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
